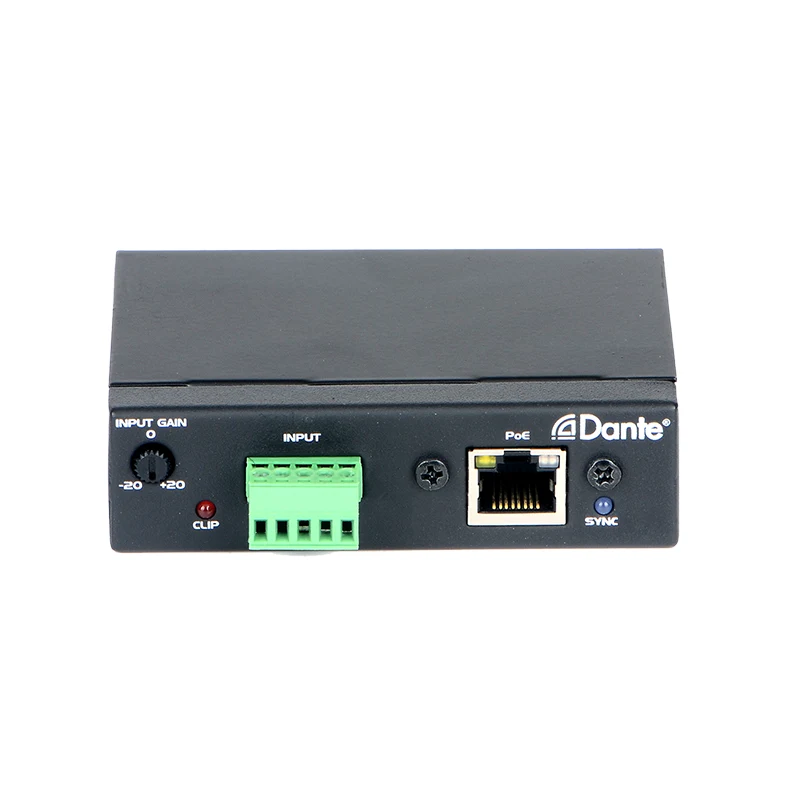

DB22i Dante audio Box is designed to provide two channels audio signal to the Dante network by the Euro terminal input. Simply use Cat5 cable to connect the RJ-45 port to an Ethernet switch, and using “Dante controller” to route the low latency of signal to other devices which already connected on the same Dante network.
Dante Interface for Audio Output
Terminal Block Input Jack on front panel Converts Audio Line Signal to Dante Network. Input Gain Control on front panel
Dante Sample Rates Support: 44.1 KHz ~ 96 KHz. High Resolution Analog to Digital Conversion Power over Ethernet (PoE)
Excellent Audio quality.
With Dante Controller software
|
LINE Input |
5P Phoenix Type, 3.5mm Pitch (Balanced/Unbalanced) |
|
Input Impedance |
15K |
|
Input Level Sensitivity |
-10 dBu nominal |
|
Input Level Sensitivity |
+10 dBu Maximum |
|
Frequency Response |
20Hz to 20KHz (+/- 2dB) |
|
THD+N |
<0.06 % @ 1KHz |
|
S/N |
95dB @ 1KHz (A Weighted) |
|
Dynamic Range |
100dB (-60dBFS A Weighted) |
|
Dante channel |
Dante channel |
|
Transmitters/Receivers |
2/2 |
|
Transmission rate |
100 Mbps |
|
Resolution |
16/24/32 Bit |
|
Sampling rate |
44.1 kHz, 48 kHz, 88.2 KHz, 96 KHz. |
|
Dante interface |
RJ-45 Jack |
|
Power supply |
PoE, 52V 36 mA |
|
Power Consumption |
1.9W |
|
Dimensions |
92.5mm(W) × 25.2mm(H) × 68.2mm(D) |
|
Weight |
200 g |

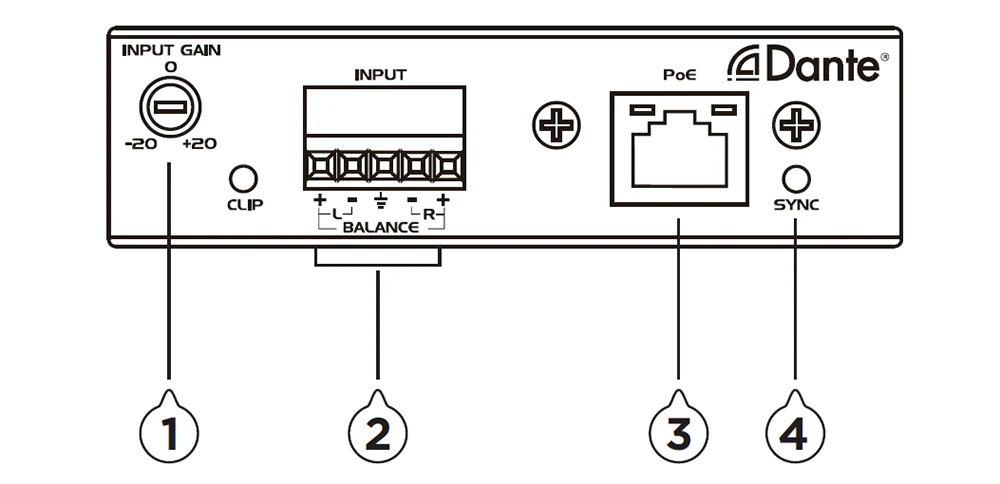

1. Line Volume: Gain control for output level.
2. Euro Terminal input: Receive the audio signal to Dante network.
3. RJ-45 port: Using Cat5 cable to connect to Dante network.
Note: The Ethernet switch needs to have PoE power supply.
4. SYNC LED: Indicates the status of Dante network.
